Product Datasheet Search Results:

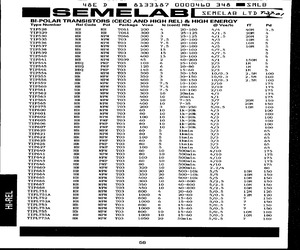

1 Pages, 162 KB, Scan- TIP560
- Semiconductor Technology, Inc.
- NPN PNP High Voltage Silicon, High Power Transistors

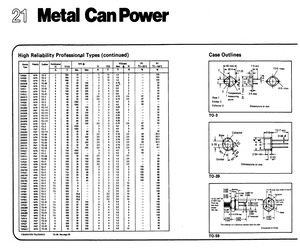

1 Pages, 62 KB, Scan- TIP560
- Texas Instruments
- Discrete Devices 1978
Product Details Search Results:
Various/TIP560
{"t(s) Max. (s) Storage time.":"1.5u","Absolute Max. Power Diss. (W)":"5.5","V(BR)CBO (V)":"450","h(FE) Min. Static Current Gain":"10","I(C) Abs.(A) Collector Current":"7.5","h(FE) Max. Current gain.":"100","I(CBO) Max. (A)":"100u","Package":"TO-3","@V(CE) (V) (Test Condition)":"2.0","V(BR)CEO (V)":"350","Military":"N","@I(C) (A) (Test Condition)":"1.0","t(r) Max. (s) Rise time":"130n","t(f) Max. (s) Fall time.":"200n","t(d) Max. (s) Delay time.":"40n"}...
