Product Datasheet Search Results:

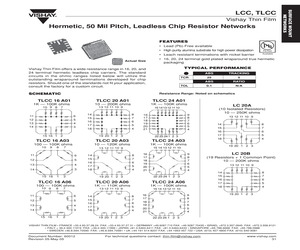

3 Pages, 553 KB, Original- LC20BH2200G
- Vishay Presicion Group
- RESISTOR, NETWORK, FILM, BUSSED, 0.5 W, SURFACE MOUNT
Product Details Search Results:
Vishay.com/LC20BH2200G
{"Temperature Coefficient Tracking":"5 ppm/Cel","Terminal Finish":"GOLD","Rated Temperature":"70 Cel","Rated Power Dissipation (P)":"0.5000 W","Operating Temperature-Max":"125 Cel","Temperature Coefficient":"50","Package Shape":"RECTANGULAR PACKAGE","Tolerance":"2 %","Network Type":"BUSSED","Status":"ACTIVE","Lead Free":"Yes","Operating Temperature-Min":"-55 Cel","Resistor Type":"FILM","Number of Functions":"1","Mounting Feature":"SURFACE MOUNT","First Element Resistance":"220 ohm","Element Power Dissipatio...
1425 Bytes - 12:26:05, 09 January 2026
