Product Datasheet Search Results:

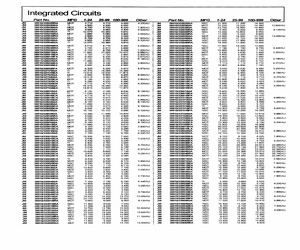

1 Pages, 47 KB, Original- JM38510/33004B2A
- N/a
- Historical semiconductor price guide (US$ - 1998). From our catalog scanning project.
16 Pages, 789 KB, Original- JM38510/33004B2A
- National Semiconductor
- NAND Gate 2-Element 4-IN Bipolar 20-Pin LCCC Tube

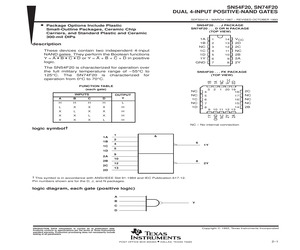

16 Pages, 818 KB, Original- JM38510/33004B2A
- Texas Instruments High-performance Analog
- F/FAST SERIES, DUAL 4-INPUT NAND GATE, CQCC20
Product Details Search Results:
National.com/JM38510/33004B2A
{"Number of Outputs":"1","Operating Supply Voltage (Min)":"4.5 V","Number of Inputs":"4-IN","Logical Function":"NAND","Mounting":"Surface Mount","High Level Output Current":"-1 mA","Low Level Output Current":"20 mA","Rad Hardened":"No","Logic Family":"F","Packaging":"Rail/Tube","Operating Temperature Classification":"Military","Operating Temp Range":"-55C to 125C","Package Type":"LCCC","Operating Supply Voltage (Max)":"5.5 V","Operating Supply Voltage (Typ)":"5 V","Technology":"Bipolar","Pin Count":"20","Nu...
1409 Bytes - 11:36:58, 22 April 2025
Ti.com/JM38510/33004B2A
{"Terminal Finish":"NOT SPECIFIED","Terminal Pitch":"1.27 mm","Number of Inputs":"4","Terminal Form":"NO LEAD","Operating Temperature-Max":"125 Cel","Supply Voltage-Nom (Vsup)":"5 V","Temperature Grade":"MILITARY","Package Shape":"SQUARE","Status":"ACTIVE","Operating Temperature-Min":"-55 Cel","Package Body Material":"CERAMIC, METAL-SEALED COFIRED","Propagation Delay (tpd)":"7 ns","Number of Functions":"2","Logic IC Type":"NAND","Supply Voltage-Max (Vsup)":"5.5 V","Supply Voltage-Min (Vsup)":"4.5 V","Surfac...
1465 Bytes - 11:36:58, 22 April 2025
