Product Datasheet Search Results:

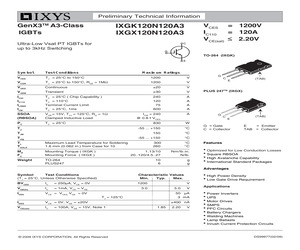

6 Pages, 216 KB, Original- IXGX120N120A3
- Ixys
- IGBT PT 1200V 120A PLUS247 - IXGX120N120A3
6 Pages, 216 KB, Original- IXGX120N120A3
- Zilog
- 240 A, 1200 V, N-CHANNEL IGBT
Product Details Search Results:
Ixys.com/IXGX120N120A3
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"240A","Switching Energy":"10mJ (on), 33mJ (off)","Vce(on) (Max) @ Vge, Ic":"2.2V @ 15V, 100A","Td (on/off) @ 25\u00b0C":"40ns/490ns","Input Type":"Standard","Package / Case":"TO-247-3","Gate Charge":"420nC","Product Photos":"Plus247","Voltage - Collector Emitter Breakdown (Max)":"1200V","Reverse Recovery Time (trr)":"-","Datasheets":"IXG(K,X)120N120A3","Standard Package":"30","Test Condition":"960V, 100A, 1 Ohm, 15V","IGBT Type"...
1756 Bytes - 11:58:19, 06 January 2026
Zilog.com/IXGX120N120A3
{"Terminal Finish":"TIN SILVER COPPER","Terminal Form":"THROUGH-HOLE","Turn-off Time-Nom (toff)":"1365 ns","Collector Current-Max (IC)":"240 A","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Transistor Element Material":"SILICON","Turn-on Time-Nom (ton)":"105 ns","EU RoHS Compliant":"Yes","Configuration":"SINGLE","Transistor Type":"INSULATED GATE BIPOLAR","Collector-emitter Voltage-Max":"1200 V","Channel Type":"N-CHANNEL","Transistor Application":"...
1372 Bytes - 11:58:19, 06 January 2026
