Product Datasheet Search Results:

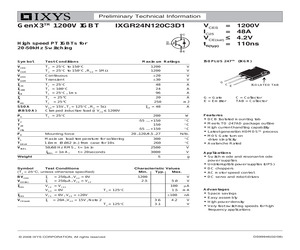

7 Pages, 161 KB, Original- IXGR24N120C3D1
- Ixys
- IGBT PT 1200V 48A DIO ISOPLUS247 - IXGR24N120C3D1
7 Pages, 161 KB, Original- IXGR24N120C3D1
- Zilog
- 48 A, 1200 V, N-CHANNEL IGBT
Product Details Search Results:
Ixys.com/IXGR24N120C3D1
{"Category":"Discrete Semiconductor Products","Current - Collector (Ic) (Max)":"48A","Switching Energy":"1.37mJ (on), 470\u00b5J (off)","Vce(on) (Max) @ Vge, Ic":"4.2V @ 15V, 20A","Td (on/off) @ 25\u00b0C":"16ns/93ns","Input Type":"Standard","Package / Case":"ISOPLUS247\u2122","Gate Charge":"79nC","Product Photos":"ISOPLUS247 Pkg IXGR24N120C3D1","Voltage - Collector Emitter Breakdown (Max)":"1200V","Reverse Recovery Time (trr)":"220ns","Datasheets":"IXGR24N120C3D1","Standard Package":"30","Test Condition":"...
1787 Bytes - 13:15:17, 06 January 2026
Zilog.com/IXGR24N120C3D1
{"Terminal Finish":"TIN SILVER COPPER","Terminal Form":"THROUGH-HOLE","Turn-off Time-Nom (toff)":"430 ns","Collector Current-Max (IC)":"48 A","Package Shape":"RECTANGULAR","Status":"ACTIVE","Lead Free":"Yes","Package Body Material":"PLASTIC/EPOXY","Transistor Element Material":"SILICON","Turn-on Time-Nom (ton)":"54 ns","EU RoHS Compliant":"Yes","Configuration":"SINGLE WITH BUILT-IN DIODE","Transistor Type":"INSULATED GATE BIPOLAR","Collector-emitter Voltage-Max":"1200 V","Channel Type":"N-CHANNEL","Transist...
1409 Bytes - 13:15:17, 06 January 2026
