Product Datasheet Search Results:

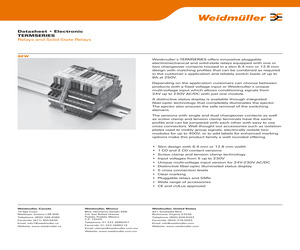

16 Pages, 1563 KB, Original- 1123490000
- Weidmuller
- Power Relays, TERM Series, Power - General Purpose, DPDT, 24 VDC, 6 A
Product Details Search Results:
Weidmuller.com/1123490000
{"Relay Terminals:":"Screw","External Depth:":"88 mm","Coil Resistance:":"-","Contact Configuration:":"DPDT","Contact Material:":"Silver Nickel","External Width:":"12.8 mm","Nom Operating Power:":"384 mW","Coil Voltage VDC Nom:":"24 V","Contact Voltage DC Nom:":"250 V","Contact Voltage VDC:":"-","Contact Current:":"6 A","Coil Current:":"16 mA","External Height:":"90 mm","Product Range:":"TERM Series","Contact Voltage AC Nom:":"250 V","SVHC:":"To Be Advised","Contact Voltage VAC:":"250 V","Coil Voltage:":"24...
1593 Bytes - 11:45:48, 05 January 2026
