VNV35N07-E OMNIFET: fully autoprotected Power MOSFET Datasheet - production data * Diagnostic feedback through input pin * ESD protection 3 1 * Direct access to the gate of the Power MOSFET (analog driving) 3 1 2 * Compatible with standard Power MOSFET D2PAK TO-220 * Standard TO-220 package * Compliant with 2002/95/EC European directive 10 Description 1 PowerSO-10 The VNP35N07-E, VNB35N07-E and VNV35N07-E are monolithic devices made using STMicroelectronics VIPower(R) technology, intended for replacement of standard Power MOSFETs in DC to 50 KHz applications. Features Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Type Vclamp RDS(on) Ilim VNP35N07-E 70 V 0.028 35 A VNB35N07-E 70 V 0.028 35 A VNV35N07-E 70 V 0.028 35 A Fault feedback can be detected by monitoring the voltage at the input pin. * Automotive qualified * Linear current limitation * Thermal shutdown * Short circuit protection * Integrated clam

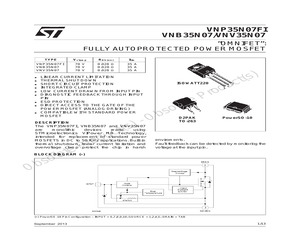

ES Australia - Brazil - Canada - China - France - Germany - Hong Kong - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A .. 13/13 VNP35N07FI VNB35N07/VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V cl amp R DS(on) I l im VNP35N07F I VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp

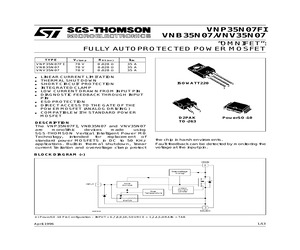

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET ) (s DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh t c u d o r P e t e l o du ISOWATT220 e t e ol s b O 1 D2PAK TO-263 ) s ( ct o r P 3 1 2 10 3 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () s b O () PowerSO-10 Pin Con

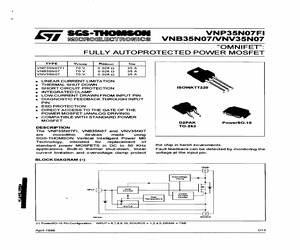

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh ISOWATT220 3 1 2 10 3 1 D2PAK TO-263 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRAIN = TAB June

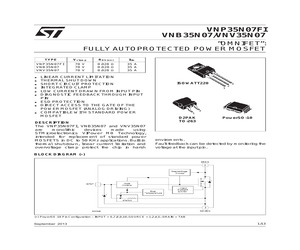

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect ISOWATT220 3 1 2 10 3 1 D2PAK TO-263 1 PowerSO-10 the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRAIN

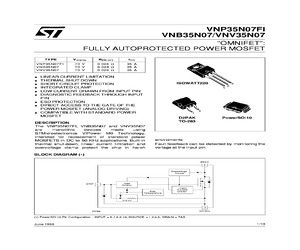

VNV35N07 OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE Vetamp Rps(on) lhim VNP35NO7FI 70V 0.028 Q 35 A VNB35N07 7OV 0.028 2 35 A VNV35N07 70V 0.028 0 35 A LINEAR CURRENT LIMITATION s THERMAL SHUT DOVWN a SHORT CIRCUIT PROTECTION INTEGRATED CLAMP a LOW CURRENT DRAWN FROM INPUT PIN a DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using SGS-THOMSON Vertical Intelligent Power MO Technology, intended for replacement of Standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect BLOCK DIAGRAM (+) ISOWATT220 3 1 D2PAK TO-263 PowerS0O-10 the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. DRAIN Overvoltage Clamp INPUT 1 | Gote | "| Linear bd Current Limiter Over . |

VNV35N07-E OMNIFET: fully autoprotected Power MOSFET Datasheet - production data * Diagnostic feedback through input pin * ESD protection 3 1 * Direct access to the gate of the Power MOSFET (analog driving) 3 1 2 * Compatible with standard Power MOSFET D2PAK TO-220 * Standard TO-220 package * Compliant with 2002/95/EC European directive 10 Description 1 PowerSO-10 The VNP35N07-E, VNB35N07-E and VNV35N07-E are monolithic devices made using STMicroelectronics VIPower(R) technology, intended for replacement of standard Power MOSFETs in DC to 50 KHz applications. Features Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Type Vclamp RDS(on) Ilim VNP35N07-E 70 V 0.028 35 A VNB35N07-E 70 V 0.028 35 A VNV35N07-E 70 V 0.028 35 A Fault feedback can be detected by monitoring the voltage at the input pin. * Automotive qualified * Linear current limitation * Thermal shutdown * Short circuit protection * Integrated clam

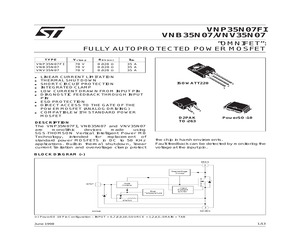

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh ISOWATT220 3 1 2 10 3 1 D2PAK TO-263 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRAIN = TAB June

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh ISOWATT220 3 1 2 10 3 1 D2PAK TO-263 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRAIN = TAB Septe

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V clamp R DS( on) I lim VNP35N07FI VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh ISOWATT220 3 1 2 10 3 1 D2PAK TO-263 1 PowerSO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRAIN = TAB June

VNV35N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE V cl amp R DS(on) I l im VNP35N07F I VNB35N07 VNV35N07 70 V 70 V 70 V 0.028 0.028 0.028 35 A 35 A 35 A LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The VNP35N07FI, VNB35N07 and VNV35N07 are monolithic devices made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect ISOWATT220 3 1 2 10 1 D2PAK TO-263 3 1 PowerSO-10 the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. BLOCK DIAGRAM () () PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE = 1,2,4,5; DRA

N a INTEGRATED GLAMP a LOW CURRENT DRAWN FROM INPUT PIN a DIAGNOSTIC FEEDBACK THROUGH INPUT PIN ESD PROTECTION DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING) a COMPATIBLE WITH STANDARD POWER MOSFET DESCRIPTION The YNP35NO07Fl, VNB35N07 and VNV35N07 are monolithic devices made using STMicroelectronics VlIPower MO Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overveliage clamp protect the chip in harsh BLOCK DIAGRAM (+) ISOWATT220 3 PowerSoO-10 enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. INPUT [1] Gate a Overvoltage Clamp Control Over Limiter Lingar Current bn) mu | Temperatura Y STATUS. Sco7ed0 La} SOURCE (#) PowerSO-10 Pin Configuration : INPUT = 6,7,8,9,10; SOURCE =1,2,4,5; DRAIN = TAB June 1998 1/13VNP35NO7A-VNB35NO7-VNV35N07 ABSOLUTE MAXIMUM RATING Symbol Parameter Value Unit PowerSO-10 ISOW ATT220 D2PAK Vos Drain-sour
