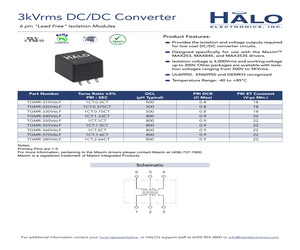

voltage is 3,000Vrms and working voltage up to 300V. Other packages are available with isolation voltages ranging from 500V to 5KVrms. UL60950, EN60950 and DEMKO recognized Temperature Range: -40 to +85C Part Number TGMR-310V6LF TGMR-320V6LF TGMR-330V6LF TGMR-340V6LF TGMR-350V6LF TGMR-355V6LF TGMR-360V6LF TGMR-370V6LF TGMR-380V6LF Turns Ratio 3% PRI : SEC 1CT:0.5CT 1CT:0.375CT 1CT:0.75CT 1CT:1.33CT 1CT:1CT 1CT:1.5CT 1CT:2CT 1CT:1.6CT 1CT:2.66CT OCL (H Typical) 500 500 500 800 800 800 800 800 800 PRI DCR ( Max) 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 PRI ET Constant (V-s Min.) 18 18 18 22 22 22 22 22 22 Notes: Primary Pins are 1-3. For more information, pertaining to the Maxim drivers please contact Maxim at (408) 737-7600. Maxim is a registered trademark of Maxim Integrated Products. Schematic For additional information contact your local representative, or HALO's support staff at (650) 903-3800 or info@haloelectronics.com 6 Pin, 3kVrms "Lead Free" DC/DC Converter Isolation Module V6 Package Recomme

voltage is 3,000Vrms and working voltage up to 300V. Other packages are available with isolation voltages ranging from 500V to 5KVrms. UL60950, EN60950 and DEMKO recognized Temperature Range: -40 to +85C Part Number TGMR-310V6LF TGMR-320V6LF TGMR-330V6LF TGMR-340V6LF TGMR-350V6LF TGMR-355V6LF TGMR-360V6LF TGMR-370V6LF TGMR-380V6LF Turns Ratio 3% PRI : SEC 1CT:0.5CT 1CT:0.375CT 1CT:0.75CT 1CT:1.33CT 1CT:1CT 1CT:1.5CT 1CT:2CT 1CT:1.6CT 1CT:2.66CT OCL (H Typical) 500 500 500 800 800 800 800 800 800 PRI DCR ( Max) 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 PRI ET Constant (V-s Min.) 18 18 18 22 22 22 22 22 22 Notes: Primary Pins are 1-3. For more information, pertaining to the Maxim drivers please contact Maxim at (408) 737-7600. Maxim is a registered trademark of Maxim Integrated Products. Schematic For additional information contact your local representative, or HALO's support staff at (650) 903-3800 or info@haloelectronics.com 6 Pin, 3kVrms "Lead Free" DC/DC Converter Isolation Module V6 Package Recomme

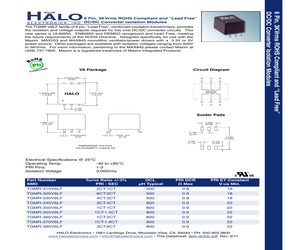

d Products. V6 Package Circuit Diagram Solder Pads DIMENSIONS: inch [mm] CO-PLANARITY: 0.004 [0.10] Electrical Specifications @ 25C Operating Temp: -40 to +85C PRI Pins: 1-3 Isolation Voltage 3,000rms Part Number SMD TGMR-310V6LF TGMR-320V6LF TGMR-330V6LF TGMR-340V6LF TGMR-350V6LF TGMR-355V6LF TGMR-360V6LF TGMR-370V6LF TGMR-380V6LF Turns Ratio +/-3% PRI : SEC 2CT:1CT 8CT:3CT 4CT:3CT 3CT:4CT 1CT:1CT 1CT:1.5CT 1CT:2CT 1CT:1.6CT 3CT:8CT OCL H Typical 500 500 500 800 800 800 800 800 800 PRI DCR Max 0.8 0.8 0.8 0.9 0.9 0.9 0.9 0.9 0.9 PRI ET Constant V-us Min. 18 18 18 22 22 22 22 22 22 HALO Electronics * 1861 Landings Drive, Mountain View, CA 94043 * PH: 650-903-3800 www.haloelectronics.com * info@haloelectronics.com * This Datasheet: 6pin-dc2dc.pdf Rev. 9/11 6 Pin, 3KVrms ROHS Compliant and "Lead Free" DC/DC Converter Isolation Modules 6 Pin, 3KVrms ROHS Compliant and "Lead Free" DC/DC Converter Isolation Modules The TGM-NA and TDM-NA, reinforced insulation, 6 pin transformers provide the isolation
