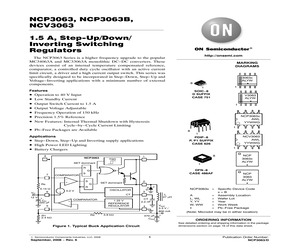

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M

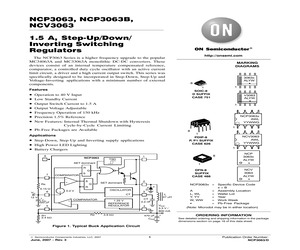

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M

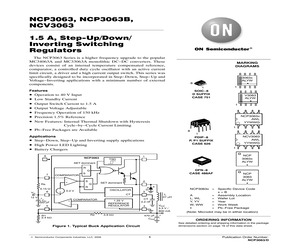

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROL

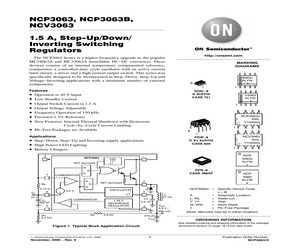

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AH NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 19

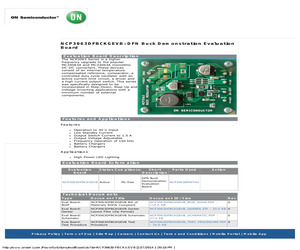

requency Operation of 150 kHz Battery Chargers Battery Chargers Applications High Power LED Lighting Evaluation Board Information Evaluation Board Status Compliance NCP3063DFBCKGEVB Active Pb-free Short Description Parts Used Action DFN Buck Demonstration NCP3063BMNTXG Evaluation Board Technical Documents Type Document Title Document ID/Size Rev Eval Board: BOM NCP3063DFBCKGEVB Bill of Materials ROHS Compliant NCP3063DFBCKGEVB_BOM_ROHS.PDF 119.0 KB 0 Eval Board: Gerber NCP3063DFBCKGEVB Gerber Layout Files (Zip Format) NCP3063DFBCKGEVB_GERBER.ZIP - 33.0 KB 0 Eval Board: Schematic NCP3063DFBCKGEVB Schematic NCP3063DFBCKGEVB_SCHEMATIC.PDF 27.0 KB Eval Board: Test Procedure NCP3063DFBCKGEVB Test Procedure NCP3063DFBCKGEVB_TEST_PROCEDURE.PDF 0 - 34.0 KB 0 Privacy Policy | Terms of Use | Site Map | Careers | Contact Us | Terms and Conditions | Mobile Portal | Mobile App http://www.onsemi.com/PowerSolutions/evalBoard.do?id=NCP3063DFBCKGEVB[2/27/2014 1:39:18 PM]

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AH NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 19

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AH NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 19

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 NCP3063, NCP3063B, NCV3063 PACKAGE DIMENSIONS SOIC-8 NB CASE 751-07 ISSUE AJ -X- NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M

ion. Typical usage is shown in the Figure 31. C3 values can be selected between 2.2 nF and 6.8 nF and R4 can be from 10 W to 22 W. ORDERING INFORMATION Package Shipping NCP3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BPG PDIP-8 (Pb-Free) 50 Units / Rail NCP3063BMNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCP3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063BDR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCP3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel NCV3063PG PDIP-8 (Pb-Free) 50 Units / Rail NCV3063DR2G SOIC-8 (Pb-Free) 2500 / Tape & Reel NCV3063MNTXG DFN-8 (Pb-Free) 4000 / Tape & Reel Device For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. NCV prefix is for automotive and other applications requiring site and change control. http://onsemi.com 16 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS DFN8, 4x4 CASE 488AF-01 ISSUE C 1 SCALE 2:1 A B D PIN ONE REFERENCE 2X 0.15 C 2X 0.15 C 0.10
