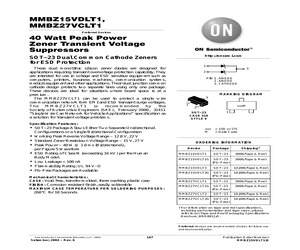

MMBZ15VDLT1G, MMBZ27VCLT1G, SZMMBZ15VDLT1G, SZMMBZ27VCLT1G 40 Watt Peak Power Zener Transient Voltage Suppressors http://onsemi.com SOT-23 Dual Common Cathode Zeners for ESD Protection These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium. The MMBZ27VCLT1G/SZMMBZ27VCLT1G can be used to protect a single wire communication network form EMI and ESD transient surge voltages. The MMBZ27VCLT1G/SZMMBZ27VCLT1G is recommended by the Society of Automotive Engineers (SAE), February 2000, J2411 "Single Wire Can Network for Vehicle Applications" specification as a solution for transien

MMBZ15VDLT1G, MMBZ27VCLT1G, SZMMBZ15VDLT1G, SZMMBZ27VCLT1G 40 Watt Peak Power Zener Transient Voltage Suppressors http://onsemi.com SOT-23 Dual Common Cathode Zeners for ESD Protection These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium. The MMBZ27VCLT1G/SZMMBZ27VCLT1G can be used to protect a single wire communication network form EMI and ESD transient surge voltages. The MMBZ27VCLT1G/SZMMBZ27VCLT1G is recommended by the Society of Automotive Engineers (SAE), February 2000, J2411 "Single Wire Can Network for Vehicle Applications" specification as a solution for transien

MMBZ15VDLT1G, MMBZ27VCLT1G, SZMMBZ15VDLT1G, SZMMBZ27VCLT1G 40 Watt Peak Power Zener Transient Voltage Suppressors http://onsemi.com SOT-23 Dual Common Cathode Zeners for ESD Protection These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium. The MMBZ27VCLT1G/SZMMBZ27VCLT1G can be used to protect a single wire communication network form EMI and ESD transient surge voltages. The MMBZ27VCLT1G/SZMMBZ27VCLT1G is recommended by the Society of Automotive Engineers (SAE), February 2000, J2411 "Single Wire Can Network for Vehicle Applications" specification as a solution for transien

MMBZ15VDLT1G, SZMMBZ27VCLT1G 40 Watt Peak Power Zener Transient Voltage Suppressors http://onsemi.com 1 SOT-23 Dual Common Cathode Zeners for ESD Protection These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium. The MMBZ27VCLT1/SZMMBZ27VCLT1G can be used to protect a single wire communication network form EMI and ESD transient surge voltages. The MMBZ27VCLT1/SZMMBZ27VCLT1G is recommended by the Society of Automotive Engineers (SAE), February 2000, J 2 4 11 "Single Wire Can Network for Vehicle Applications" specification as a solution for transient voltage problems. * SOT-23 Package All

SE TEMPERATURE FOR SOLDERING PURPOSES: 260C for 10 Seconds ANODE 1 3 CATHODE ANODE 2 MARKING DIAGRAM XXX MG G 1 XXX = 15D, 27C or 39C M = Date Code G = Pb-Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping MMBZ15VDLT1G, SOT-23 SZMMBZ15VDLT1G (Pb-Free) 3,000 / Tape & Reel MMBZ15VDLT3G, SOT-23 SZMMBZ15VDLT3G (Pb-Free) 10,000 / Tape & Reel MMBZxxVCLT1G, SZMMBZxxVCLT1G SOT-23 (Pb-Free) 3,000 / Tape & Reel MMBZxxVCLT3G, SZMMBZxxVCLT3G SOT-23 (Pb-Free) 10,000 / Tape & Reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. (c) Semiconductor Components Industries, LLC, 1994 August, 2018 - Rev. 17 1 Publication Order Number: MMBZ15VDLT1/D MMBZxxVxL, SZMMBZxxVxL Series MAXIMUM RATINGS Symbol Value Unit Peak Power Dissipation @ 1.0 ms (Note 1) @ TL 25C Rating Ppk 40 Watts Total Power Dissipation on FR-5 Board (Note 2) @ TA =

SE TEMPERATURE FOR SOLDERING PURPOSES: 260C for 10 Seconds ANODE 1 3 CATHODE ANODE 2 MARKING DIAGRAM XXX MG G 1 XXX = 15D, 27C or 39C M = Date Code G = Pb-Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping MMBZ15VDLT1G, SOT-23 SZMMBZ15VDLT1G (Pb-Free) 3,000 / Tape & Reel MMBZ15VDLT3G, SOT-23 SZMMBZ15VDLT3G (Pb-Free) 10,000 / Tape & Reel MMBZxxVCLT1G, SZMMBZxxVCLT1G SOT-23 (Pb-Free) 3,000 / Tape & Reel MMBZxxVCLT3G, SZMMBZxxVCLT3G SOT-23 (Pb-Free) 10,000 / Tape & Reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. (c) Semiconductor Components Industries, LLC, 1994 August, 2018 - Rev. 17 1 Publication Order Number: MMBZ15VDLT1/D MMBZxxVxL, SZMMBZxxVxL Series MAXIMUM RATINGS Symbol Value Unit Peak Power Dissipation @ 1.0 ms (Note 1) @ TL 25C Rating Ppk 40 Watts Total Power Dissipation on FR-5 Board (Note 2) @ TA =

SE TEMPERATURE FOR SOLDERING PURPOSES: 260C for 10 Seconds ANODE 1 3 CATHODE ANODE 2 MARKING DIAGRAM XXX MG G 1 XXX = 15D, 27C or 39C M = Date Code G = Pb-Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping MMBZ15VDLT1G, SOT-23 SZMMBZ15VDLT1G (Pb-Free) 3,000 / Tape & Reel MMBZ15VDLT3G, SOT-23 SZMMBZ15VDLT3G (Pb-Free) 10,000 / Tape & Reel MMBZxxVCLT1G, SZMMBZxxVCLT1G SOT-23 (Pb-Free) 3,000 / Tape & Reel MMBZxxVCLT3G, SZMMBZxxVCLT3G SOT-23 (Pb-Free) 10,000 / Tape & Reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. (c) Semiconductor Components Industries, LLC, 1994 August, 2018 - Rev. 17 1 Publication Order Number: MMBZ15VDLT1/D MMBZxxVxL, SZMMBZxxVxL Series MAXIMUM RATINGS Symbol Value Unit Peak Power Dissipation @ 1.0 ms (Note 1) @ TL 25C Rating Ppk 40 Watts Total Power Dissipation on FR-5 Board (Note 2) @ TA =

SE TEMPERATURE FOR SOLDERING PURPOSES: 260C for 10 Seconds ANODE 1 3 CATHODE ANODE 2 MARKING DIAGRAM XXX MG G 1 XXX = 15D, 27C or 39C M = Date Code G = Pb-Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping MMBZ15VDLT1G, SOT-23 SZMMBZ15VDLT1G (Pb-Free) 3,000 / Tape & Reel MMBZ15VDLT3G, SOT-23 SZMMBZ15VDLT3G (Pb-Free) 10,000 / Tape & Reel MMBZxxVCLT1G, SZMMBZxxVCLT1G SOT-23 (Pb-Free) 3,000 / Tape & Reel MMBZxxVCLT3G, SZMMBZxxVCLT3G SOT-23 (Pb-Free) 10,000 / Tape & Reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. (c) Semiconductor Components Industries, LLC, 1994 August, 2018 - Rev. 17 1 Publication Order Number: MMBZ15VDLT1/D MMBZxxVxL, SZMMBZxxVxL Series MAXIMUM RATINGS Symbol Value Unit Peak Power Dissipation @ 1.0 ms (Note 1) @ TL 25C Rating Ppk 40 Watts Total Power Dissipation on FR-5 Board (Note 2) @ TA =
