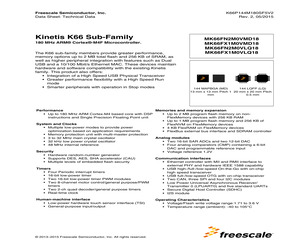

compatibility with the existing Kinetis family. This product also offers: * Integration of a High Speed USB Physical Transceiver * Greater performance flexibility with a High Speed Run mode * Smarter peripherals with operation in Stop modes MK66FN2M0VMD18 MK66FX1M0VMD18 MK66FN2M0VLQ18 MK66FX1M0VLQ18 144 MAPBGA (MD) 144 LQFP (LQ) 13 mm x 13 mm Pitch 1 20 mm x 20 mm Pitch mm 0.5 mm Performance Memories and memory expansion * Up to 180 MHz ARM Cortex-M4 based core with DSP * Up to 2 MB program flash memory on noninstructions and Single Precision Floating Point unit FlexMemory devices with 256 KB RAM * Up to 1 MB program flash memory and 256 KB of System and Clocks FlexNVM on FlexMemory devices * Multiple low-power modes to provide power * 4 KB FlexRAM on FlexMemory devices optimization based on application requirements * FlexBus external bus interface and SDRAM controller * Memory protection unit with multi-master protection Analog modules * 3 to 32 MHz main crystal oscillator * 32 kHz low power cry

compatibility with the existing Kinetis family. This product also offers: * Integration of a High Speed USB Physical Transceiver * Greater performance flexibility with a High Speed Run mode * Smarter peripherals with operation in Stop modes MK66FN2M0VMD18 MK66FX1M0VMD18 MK66FN2M0VLQ18 MK66FX1M0VLQ18 144 MAPBGA (MD) 144 LQFP (LQ) 13 mm x 13 mm Pitch 1 20 mm x 20 mm Pitch mm 0.5 mm Performance Memories and memory expansion * Up to 180 MHz ARM Cortex-M4 based core with DSP * Up to 2 MB program flash memory on noninstructions and Single Precision Floating Point unit FlexMemory devices with 256 KB RAM * Up to 1 MB program flash memory and 256 KB of System and Clocks FlexNVM on FlexMemory devices * Multiple low-power modes to provide power * 4 KB FlexRAM on FlexMemory devices optimization based on application requirements * FlexBus external bus interface and SDRAM controller * Memory protection unit with multi-master protection Analog modules * 3 to 32 MHz main crystal oscillator * 32 kHz low power cry

compatibility with the existing Kinetis family. This product also offers: * Integration of a High Speed USB Physical Transceiver * Greater performance flexibility with a High Speed Run mode * Smarter peripherals with operation in Stop modes MK66FN2M0VMD18 MK66FX1M0VMD18 MK66FN2M0VLQ18 MK66FX1M0VLQ18 144 MAPBGA (MD) 144 LQFP (LQ) 13 mm x 13 mm Pitch 1 20 mm x 20 mm Pitch mm 0.5 mm Performance Memories and memory expansion * Up to 180 MHz ARM Cortex-M4 based core with DSP * Up to 2 MB program flash memory on noninstructions and Single Precision Floating Point unit FlexMemory devices with 256 KB RAM * Up to 1 MB program flash memory and 256 KB of System and Clocks FlexNVM on FlexMemory devices * Multiple low-power modes to provide power * 4 KB FlexRAM on FlexMemory devices optimization based on application requirements * FlexBus external bus interface and SDRAM controller * Memory protection unit with multi-master protection Analog modules * 3 to 32 MHz main crystal oscillator * 32 kHz low power cry

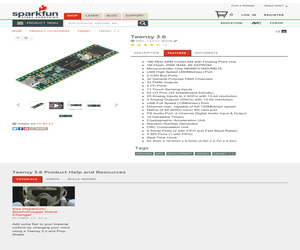

D U C T C A T E G O R I E S LEARN 0 SUPPORT LOG IN EDUCATION / TEENSY / T E E N S Y 3 . 6 Teensy 3.6 D E V - 1 4 0 5 7 ROHS 12 DESCRIPTION FEATURES DOCUMENTS 180 MHz ARM Cortex-M4 with Floating Point Unit 1M Flash, 256K RAM, 4K EEPROM Microcontroller Chip MK66FX1M0VMD18 USB High Speed (480Mbit/sec) Port 2 CAN Bus Ports 32 General Purpose DMA Channels 22 PWM Outputs 4 I2C Ports 11 Touch-Sensing Inputs 62 I/O Pins (42 breadboard friendly) 25 Analog Inputs to 2 ADCs with 13-bit resolution 2 Analog Outputs (DACs) with 12-bit resolution USB Full Speed (12Mbit/sec) Port Ethernet mac, capable of full 100Mbit/sec speed Native (4-bit SDIO) micro SD card port I2S Audio Port, 4-Channel Digital Audio Input & Output 14 Hardware Timers Cryptographic Acceleration Unit Random Number Generator CRC Computation Unit 6 Serial Ports (2 with FIFO and Fast Baud Rates) 3 SPI Ports (1 with FIFO) Real-Time Clock 62.3mm x 18.0mm x 4.2mm (2.5in x 0.7in x 0.2in) images are CC BY 2.0 SHARE Tags ARDUINO Teensy 3.6 Product Help

ocessor with floating point unit. All digital and analog pins are 3.3 volts. Do not apply more than 3.3V to any signal pin. The unique specs for the 3.6 are: 180 MHz ARM Cortex-M4 with Floating Point Unit 1M Flash, 256K RAM, 4K EEPROM Microcontroller Chip MK66FX1M0VMD18 (PDF link) USB High Speed (480 Mbit/sec) Port 2 CAN Bus Ports 32 General Purpose DMA Channels 22 PWM Outputs 4 I2C Ports 11 Touch Sensing Inputs The latest in the line of very powerful, USB-capable microcontrollers, the Teensy 3.5 and 3.6 development boards are faster, more capable, and bigger, putting even more pins on a solderless breadboard. Teensy 3.6 offers a little bit more in its features (MCU, RAM, Flash, clock and some peripherals) than Teensy 3.5, and only the 3.6 has a USB High Speed (480 Mbit/sec) port accessed using 5 pins on the board. Please note: Teensy 3 boards are not official Arduino-brand products. Although the Teensyduino IDE has been adapted so that many Arduino projects will work with the Teensy, there will

-bit ADC DP Total 16-bit ADC SE 12-bit DAC Analog Comparator Analog Comparator Inputs Vref MPU SPFPU DMA 5 V Tolerant GPIO (w interrupt) Evaluation Board (See Page 17) Memory mapped Crytpo Acceleration unit CRC MK66FN2M0VLQ18 MK66FN2M0VMD18 MK66FX1M0VLQ18 MK66FX1M0VMD18 Common Features Temperature range: -40 to 105 Voltage range:1.71 to 3.6 V Flash write voltage: 1.71 CPU Frequency Part Number Footnotes Sub-Family K66: Ethernet MCU with 2MB Flash and 256KB SRAM 180 180 180 180 144 144 144 144 LQFP MAPBGA LQFP MAPBGA 2048 2048 1280 1280 2048 2048 1024 1024 - - 256 256 - - 4 4 256 256 256 256 6 6 6 6 Y Y Y Y Y Y Y Y 8 8 8 8 6/4/2 6/4/2 6/4/2 6/4/2 4 4 4 4 1 1 1 1 2 2 2 2 2x8ch 2x8ch 2x8ch 2x8ch 2x2ch 2x2ch 2x2ch 2x2ch 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 39 39 39 39 0/2 0/2 0/2 0/2 4 4 4 4 6/6/4/4 6/6/4/4 6/6/4/4 6/6/4/4 Y Y Y Y Y Y Y Y Y Y Y Y 32 ch 32 ch 32 ch 32 ch - - - - 100 100 100 100 T15 T15 T15 T15 Y Y Y Y Y Y Y Y Main OSC:32-40kHz/8-32MHz Debug:JTAG,cJTAG,SWD, 48MHz IRC RTC (32 KHz OSC, Vbat)

/RMII 1x4ch 2 Y Y (w/ PHY) 6 1 1 8 3 6/4/2 4 1 2 2x8ch 2x2ch 1 39 2 4 6/6/4/4 Y Y Y - - T15/F4 MK66FX1M0VLQ18 180 Y Y 32ch 144 LQFP 100 1280 1024 256 4 256 8 MII/RMII 1x4ch 2 Y Y (w/ PHY) 6 1 1 8 3 6/4/2 4 1 2 2x8ch 2x2ch 1 39 2 4 6/6/4/4 Y Y Y - - T15/F4 MK66FX1M0VMD18 180 Y Y 32ch 144 MAPBGA 100 1280 1024 256 4 256 8 MII/RMII 1x4ch 2 Y Y (w/ PHY) 6 1 1 8 3 6/4/2 4 1 2 2x8ch 2x2ch 1 39 2 4 6/6/4/4 Y Y Y - - T15/F4 Flash (KB) DMA Y Y Total Flash Memory (KB) MPU Y 180 Total GPIOs Single Precision FPU 180 MK66FN2M0VMD18 Package CPU Frequency (MHz) MK66FN2M0VLQ18 Part Number Footnotes K66 SUB-FAMILY: ETHERNET MCU WITH 2 MB FLASH AND 256 KB SRAM Common Features Ambient Temp Range: -40C to 105C Voltage Range: 1 .71-3 .6 V Main OSC: 32-40 KHz/8-32 MHz Debug: JTAG, cJTAG, SWD, 48 MHz IRC PIT (32 bit): 1x4ch 2x FTM External Clk, 1x Low Power Timer, 1x Programmable Delay Block Hardware Watchdog, Software Watchdog, PMC, MCG, NMI, CRC, DSP USB Device Charge Detect, USB 120 mAReg, USB Full-Speed Crystal-less
