MJH16006A 1 kV SWITCHMODE Series These transistors are designed for high-voltage, high-speed, power switching in inductive circuits where fall time is critical. They are particularly suited for line-operated SWITCHMODE applications. POWER TRANSISTORS 8 AMPERES 500 VOLTS 150 WATTS Typical Applications: * * * * * * Switching Regulators Inverters Solenoids Relay Drivers Motor Controls Deflection Circuits Features: * * * * * * * * Collector-Emitter Voltage -- VCEV = 1000 Vdc Fast Turn-Off Times 80 ns Inductive Fall Time -- 100C (Typ) 120 ns Inductive Crossover Time -- 100C (Typ) 800 ns Inductive Storage Time -- 100C (Typ) 100C Performance Specified for: Reverse-Biased SOA with Inductive Load Switching Times with Inductive Loads Saturation Voltages Leakage Currents Extended FBSOA Rating Using Ultra-fast Rectifiers Extremely High RBSOA Capability CASE 340D-02 Preferred devices are ON Semiconductor recommended choices for future use and best overall value. Semiconductor Components Industries, LLC, 2001

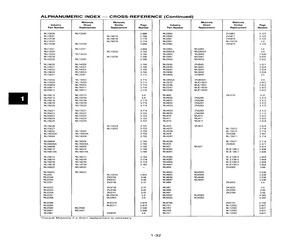

U52 3-1060 MJH13091 MJH16010 3-758 MPSUS55 MPS-U55 3-1062 MJH16002 MJH16002 3-976 MPSUS56 MPS-U56 3-1062 MJH16002A MJH16002A 3-734 MPSU57 MPS-U57 3-1064 MJH16004 MJH16004 3-976 MPSU60 MPS-U60 3-1066 MJH16006 MJH16006 3-742 MPSUS5 MPS-U95 3-1068 MJH 160064 MJH16006A 3-750 NSD102 204923 3-79 MJH16008 MJH16008 3-742 NSD103 2N4923 3-79 MJH16010 MJH16010 3-758 NSD104 2N4923 3-79 MJH16010A MJH16010A 3-766 NSD105 2N4923 379 MJH16012 MJH16012 3-758 NSD106 2N4923 3-19 MJH16018 MJH16018 3-782 NSD131 MJE340 3-876 MJH16032 MJH16032 3-984 NSD132 MJE340 3-876 MJH16034 MJH16034 3-984 NSD133 MJE340 3-876 MJH6282 MJH6282 3-1030 NSD134 MJE340 3-876 MJH6283 MJHE283 3-1030 NSD135 MJE340 3-876 MJH6284 MJH6284 3-1030 NSD151 MJE800 3-888 MJH6285 MJH6285 3-1030 NSD152 MJE800 3-888 MJH6286 MJH6286 3-1030 NSD202 2N4919 375 MJH6287 MJH6287 3-1030 NSD203 2N4919 3-75 MJH6676 MJH16010 3-758 NSD204 2N4919 3-75 MJH6677 MJH16010 3-758 NSD205 2N4919 3-75 MJH6678 MJH16010 3-758 NSD206 2N4919 3-75 MPC900 2N6050 3-143 NSD3439 MJE343

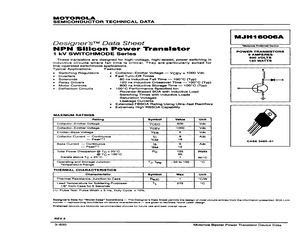

MJH16006A/D SEMICONDUCTOR TECHNICAL DATA 1 kV SWITCHMODE Series These transistors are designed for high-voltage, high-speed, power switching in inductive circuits where fall time is critical. They are particularly suited for line-operated switchmode applications. Typical Applications: Features: * * * * * * Switching Regulators Inverters Solenoids Relay Drivers Motor Controls Deflection Circuits POWER TRANSISTORS 8 AMPERES 500 VOLTS 150 WATTS * Collector-Emitter Voltage -- VCEV = 1000 Vdc * Fast Turn-Off Times 80 ns Inductive Fall Time -- 100_C (Typ) 120 ns Inductive Crossover Time -- 100_C (Typ) 800 ns Inductive Storage Time -- 100_C (Typ) * 100_C Performance Specified for: Reverse-Biased SOA with Inductive Load Switching Times with Inductive Loads Saturation Voltages Leakage Currents * Extended FBSOA Rating Using Ultra-fast Rectifiers * Extremely High RBSOA Capability IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIII IIIII III IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIII IIIII III IIIIIIIIIIIIII IIII I

TO-204/1 15 850 BUT51P## 40 min 5 11 0.16 70 125 TO-218/340D 1000 MJ16010A 5 min 15 3 0.4 10 TO-204/1 1000 MJH16010A* 5 min 18 3 0.4 10 TO-218/340 8 850 BUT50P## 30 min 2 0.75 typ] 0.1 typ 5 100 TO-218/340D 1000 MJ16006A-% 5 min 15 3 0.4 10 TO-204/1 1000 MJH16006A * 5 min 15 3 0.4 10 TO-218/340 5 1000 MJ16002A-*% 5 min 15 3 0.3 3 TO-204/1 1000 MJH16002A * 5 min 15 3 0.3 3 TO-218/340 450 30 850 MJ16020 5 min 30 1.8 0.2 20 250 TO-204/1 850 MJ16022 7 min 30 1.5 0.15 20 250 TO-204/1 1000 BUS98A 8 min 16 2.3 0.4 16 250 TO-204/197 20 650 MJ10008#-# * 30/300 10 2 0.6 10 8** TO-204/1 850 2N6837* 10/30 15 2.5 0.25 16 15 TO-204/1 850 MJ16014% 5 min 20 2.7 0.35 20 TO-204/197 850 MJ16016% 7 min 20 2.2 0.25 20 TO-204/197 15 850 2N6836*% 10/30 10 3 0.35 10 10 TO-204/1 850 MJ12022*% 5 min 15 0.1 typ 10 TO-204/1 850 MJ16010% 5 min 15 1.2 typ | 0.2 typ 10 TO-204/1 850 MJ16012* 7 min 15 0.9 typ 0.15 typ} 10 TO-204/1 850 MJH16010% 5 min 15 1.2 0.2 10 175 TO-218/340 850 MJH16012% 7 min 15 0.9 0.15 10 150 TO-218/340

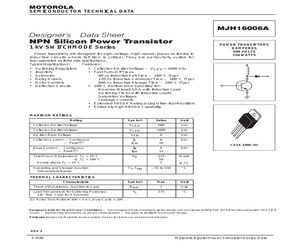

MJH16006A Data Sheet Designer's NPN Silicon Power Transistor 1 kV SWITCHMODE Series These transistors are designed for high-voltage, high-speed, power switching in inductive circuits where fall time is critical. They are particularly suited for line-operated switchmode applications. Typical Applications: Features: * * * * * * Switching Regulators Inverters Solenoids Relay Drivers Motor Controls Deflection Circuits POWER TRANSISTORS 8 AMPERES 500 VOLTS 150 WATTS * Collector-Emitter Voltage -- VCEV = 1000 Vdc * Fast Turn-Off Times 80 ns Inductive Fall Time -- 100_C (Typ) 120 ns Inductive Crossover Time -- 100_C (Typ) 800 ns Inductive Storage Time -- 100_C (Typ) * 100_C Performance Specified for: Reverse-Biased SOA with Inductive Load Switching Times with Inductive Loads Saturation Voltages Leakage Currents * Extended FBSOA Rating Using Ultra-fast Rectifiers * Extremely High RBSOA Capability IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIII IIIII III IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIII IIIII III I

MJF6668 MJH10012 -- 3-783 3-797 3-821 3-821 3-802 3-457 NSP205 NSP2090 NSP2091 NSP2092 NSP2093 NSP2100 NSP2101 TIP41B TIP125 TIP125 TIP126 TIP126 TIP120 TIP120 3-883 3-900 3-900 3-900 3-900 3-900 3-900 MJH11017 MJH11018 MJH11019 MJH11020 MJH11021 MJH11022 MJH16006A MJH11017 MJH11018 MJH11019 MJH11020 MJH11021 MJH11022 MJH16006A 3-825 3-825 3-825 3-825 3-825 3-825 3-830 NSP2102 NSP2103 NSP2370 NSP2480 NSP2481 NSP2490 NSP2491 TIP121 TIP121 TIP32B TIP31B TIP31B TIP32B TIP32B 3-900 3-900 3-873 3-873 3-873 3-873 3-873 3-512 3-847 3-512 3-520 3-520 3-520 3-696 NSP2520 NSP2955 NSP3054 NSP3055 NSP370 NSP371 NSP41 TIP31B MJE2955T TIP31B MJE3055T TIP32B TIP32B TIP41B 3-873 3-628 3-873 3-628 3-873 3-873 3-883 TIP121 MJE803 TIP121 MJE1320 MJE1320 MJH6284 MJH6287 MJH16010 MJH16010A MJH16012 MJH16018 MJH16032 MJH16034 MJH16106 Index and Cross Reference 1-26 MJW16010 MJW16010A MJW16010 MJW16018 MJW16018 MJW16018 MJE16106 Motorola Bipolar Power Transistor Device Data INDEX AND CROSS REFERENCE (conti

MJH16006A/D SEMICONDUCTOR TECHNICAL DATA 1 kV SWITCHMODE Series These transistors are designed for high-voltage, high-speed, power switching in inductive circuits where fall time is critical. They are particularly suited for line-operated switchmode applications. Typical Applications: Features: * * * * * * Switching Regulators Inverters Solenoids Relay Drivers Motor Controls Deflection Circuits POWER TRANSISTORS 8 AMPERES 500 VOLTS 150 WATTS * Collector-Emitter Voltage -- VCEV = 1000 Vdc * Fast Turn-Off Times 80 ns Inductive Fall Time -- 100_C (Typ) 120 ns Inductive Crossover Time -- 100_C (Typ) 800 ns Inductive Storage Time -- 100_C (Typ) * 100_C Performance Specified for: Reverse-Biased SOA with Inductive Load Switching Times with Inductive Loads Saturation Voltages Leakage Currents * Extended FBSOA Rating Using Ultra-fast Rectifiers * Extremely High RBSOA Capability IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIII IIIII III IIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIII IIIIIIIIIIII

50 C Temperature Range THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Thermal Resistance, Junction to Case Reuc 1 "CW Lead Temperature for Soldering Purposes: TL 275 C 1/8 from Case for Seconds (1) Pulse Test: Pulse Width = 5 ms, Duty Cycle < 10%. MJH16006A *Motorola Preferred Device POWER TRANSISTORS 8 AMPERES 00 VOLTS 150 WATTS y i] CASE 3400-01 Gesigner's Data for Worst Case Conditions The Designer's Data Sheet permits the design of most circuits entirety from the information presented. SOA Limit curves representing boundaries on device characteristics are given to facilitate worst case dasign. Preferred devices are Motorola recommended choices for future use and best overall value. REV3 3-830 Motorola Bipolar Power Transistor Device DataELECTRICAL CHARACTERISTICS (Tc = 25C unless otherwise noted) MJH16006A | Characteristic Symbol | Min | Typ | Max | Unit | OFF CHARACTERISTICS(1) Collector-Emitter Sustaining Voltage (Table 1) VCEO (sus) 500 ~ _ Vde (Ic = 100 mA, Ig = 0) Co

U52 3-1060 MJH13091 MJH16010 3-758 MPSUS55 MPS-U55 3-1062 MJH16002 MJH16002 3-976 MPSUS56 MPS-U56 3-1062 MJH16002A MJH16002A 3-734 MPSU57 MPS-U57 3-1064 MJH16004 MJH16004 3-976 MPSU60 MPS-U60 3-1066 MJH16006 MJH16006 3-742 MPSUS5 MPS-U95 3-1068 MJH 160064 MJH16006A 3-750 NSD102 204923 3-79 MJH16008 MJH16008 3-742 NSD103 2N4923 3-79 MJH16010 MJH16010 3-758 NSD104 2N4923 3-79 MJH16010A MJH16010A 3-766 NSD105 2N4923 379 MJH16012 MJH16012 3-758 NSD106 2N4923 3-19 MJH16018 MJH16018 3-782 NSD131 MJE340 3-876 MJH16032 MJH16032 3-984 NSD132 MJE340 3-876 MJH16034 MJH16034 3-984 NSD133 MJE340 3-876 MJH6282 MJH6282 3-1030 NSD134 MJE340 3-876 MJH6283 MJHE283 3-1030 NSD135 MJE340 3-876 MJH6284 MJH6284 3-1030 NSD151 MJE800 3-888 MJH6285 MJH6285 3-1030 NSD152 MJE800 3-888 MJH6286 MJH6286 3-1030 NSD202 2N4919 375 MJH6287 MJH6287 3-1030 NSD203 2N4919 3-75 MJH6676 MJH16010 3-758 NSD204 2N4919 3-75 MJH6677 MJH16010 3-758 NSD205 2N4919 3-75 MJH6678 MJH16010 3-758 NSD206 2N4919 3-75 MPC900 2N6050 3-143 NSD3439 MJE343

U52 3-1060 MJH13091 MJH16010 3-758 MPSUS55 MPS-U55 3-1062 MJH16002 MJH16002 3-976 MPSUS56 MPS-U56 3-1062 MJH16002A MJH16002A 3-734 MPSU57 MPS-U57 3-1064 MJH16004 MJH16004 3-976 MPSU60 MPS-U60 3-1066 MJH16006 MJH16006 3-742 MPSUS5 MPS-U95 3-1068 MJH 160064 MJH16006A 3-750 NSD102 204923 3-79 MJH16008 MJH16008 3-742 NSD103 2N4923 3-79 MJH16010 MJH16010 3-758 NSD104 2N4923 3-79 MJH16010A MJH16010A 3-766 NSD105 2N4923 379 MJH16012 MJH16012 3-758 NSD106 2N4923 3-19 MJH16018 MJH16018 3-782 NSD131 MJE340 3-876 MJH16032 MJH16032 3-984 NSD132 MJE340 3-876 MJH16034 MJH16034 3-984 NSD133 MJE340 3-876 MJH6282 MJH6282 3-1030 NSD134 MJE340 3-876 MJH6283 MJHE283 3-1030 NSD135 MJE340 3-876 MJH6284 MJH6284 3-1030 NSD151 MJE800 3-888 MJH6285 MJH6285 3-1030 NSD152 MJE800 3-888 MJH6286 MJH6286 3-1030 NSD202 2N4919 375 MJH6287 MJH6287 3-1030 NSD203 2N4919 3-75 MJH6676 MJH16010 3-758 NSD204 2N4919 3-75 MJH6677 MJH16010 3-758 NSD205 2N4919 3-75 MJH6678 MJH16010 3-758 NSD206 2N4919 3-75 MPC900 2N6050 3-143 NSD3439 MJE343

n 5 1 typ 1.5 typ 5 4 85 STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR 4 CASE 340D (TO-218 Type, SOT-93) 1 2 3 Table 3. Plastic TO-218 Type Device Type ICCont Amps Max VCEO(sus) Volts Min(8) 8 500/1000 10 60 100 400 NPN Resistive Switching PNP MJH16006A tf s Max @ IC Amp PD (Case) Watts @ 25C hFE Min/Max @ IC Amp ts s Max 5 min 8 2.5 0.25 5 500 min 10 2.5 typ 2.5 typ 5 4(1) 125 5 4(1) 125 fT MHz Min 125 TIP140(2) TIP145(2) TIP141 (2) TIP146 (2) BDV65B (2) BDV64B (2) TIP33C TIP34C 20/100 3 TIP142(2) TIP147(2) 500 min 10 2.5 typ 2.5 typ 5 BU323AP (2) 150/100 6 15 15 6 125 MJH10012 (2) 100/2k 6 15 15 6 118 (1)|h | @ 1 MHz FE (2)Darlington (8)When 2 voltages are given, the format is V 500 min 10 1k min 5 2.5 typ 2.5 typ 125 3 80 4(1) 125 CEO(sus) / VCES. Devices listed in bold, italic are Motorola preferred devices. Motorola Bipolar Power Transistor Device Data Selector Guide 2-7 Table 3. Plastic TO-218 Type (continued) Device Type Resistive Switching ICCont Amps Max VCEO(sus) Volts Min(8

n 5 1 typ 1.5 typ 5 4 85 STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR 4 CASE 340D (TO-218 Type, SOT-93) 1 2 3 Table 3. Plastic TO-218 Type Device Type ICCont Amps Max VCEO(sus) Volts Min(8) 8 500/1000 10 60 100 400 NPN Resistive Switching PNP MJH16006A tf s Max @ IC Amp PD (Case) Watts @ 25C hFE Min/Max @ IC Amp ts s Max 5 min 8 2.5 0.25 5 500 min 10 2.5 typ 2.5 typ 5 4(1) 125 5 4(1) 125 fT MHz Min 125 TIP140(2) TIP145(2) TIP141 (2) TIP146 (2) BDV65B (2) BDV64B (2) TIP33C TIP34C 20/100 3 TIP142(2) TIP147(2) 500 min 10 2.5 typ 2.5 typ 5 BU323AP (2) 150/100 6 15 15 6 125 MJH10012 (2) 100/2k 6 15 15 6 118 (1)|h | @ 1 MHz FE (2)Darlington (8)When 2 voltages are given, the format is V 500 min 10 1k min 5 2.5 typ 2.5 typ 125 3 80 4(1) 125 CEO(sus) / VCES. Devices listed in bold, italic are Motorola preferred devices. Motorola Bipolar Power Transistor Device Data Selector Guide 2-7 Table 3. Plastic TO-218 Type (continued) Device Type Resistive Switching ICCont Amps Max VCEO(sus) Volts Min(8

n 5 1 typ 1.5 typ 5 4 85 STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR 4 CASE 340D (TO-218 Type, SOT-93) 1 2 3 Table 3. Plastic TO-218 Type Device Type ICCont Amps Max VCEO(sus) Volts Min(8) 8 500/1000 10 60 100 400 NPN Resistive Switching PNP MJH16006A tf s Max @ IC Amp PD (Case) Watts @ 25C hFE Min/Max @ IC Amp ts s Max 5 min 8 2.5 0.25 5 500 min 10 2.5 typ 2.5 typ 5 4(1) 125 5 4(1) 125 fT MHz Min 125 TIP140(2) TIP145(2) TIP141 (2) TIP146 (2) BDV65B (2) BDV64B (2) TIP33C TIP34C 20/100 3 TIP142(2) TIP147(2) 500 min 10 2.5 typ 2.5 typ 5 BU323AP (2) 150/100 6 15 15 6 125 MJH10012 (2) 100/2k 6 15 15 6 118 (1)|h | @ 1 MHz FE (2)Darlington (8)When 2 voltages are given, the format is V 500 min 10 1k min 5 2.5 typ 2.5 typ 125 3 80 4(1) 125 CEO(sus) / VCES. Devices listed in bold, italic are Motorola preferred devices. Motorola Bipolar Power Transistor Device Data Selector Guide 2-7 Table 3. Plastic TO-218 Type (continued) Device Type Resistive Switching ICCont Amps Max VCEO(sus) Volts Min(8

n 5 1 typ 1.5 typ 5 4 85 STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR 4 CASE 340D (TO-218 Type, SOT-93) 1 2 3 Table 3. Plastic TO-218 Type Device Type ICCont Amps Max VCEO(sus) Volts Min(8) 8 500/1000 10 60 100 400 NPN Resistive Switching PNP MJH16006A tf s Max @ IC Amp PD (Case) Watts @ 25C hFE Min/Max @ IC Amp ts s Max 5 min 8 2.5 0.25 5 500 min 10 2.5 typ 2.5 typ 5 4(1) 125 5 4(1) 125 fT MHz Min 125 TIP140(2) TIP145(2) TIP141 (2) TIP146 (2) BDV65B (2) BDV64B (2) TIP33C TIP34C 20/100 3 TIP142(2) TIP147(2) 500 min 10 2.5 typ 2.5 typ 5 BU323AP (2) 150/100 6 15 15 6 125 MJH10012 (2) 100/2k 6 15 15 6 118 (1)|h | @ 1 MHz FE (2)Darlington (8)When 2 voltages are given, the format is V 500 min 10 1k min 5 2.5 typ 2.5 typ 125 3 80 4(1) 125 CEO(sus) / VCES. Devices listed in bold, italic are Motorola preferred devices. Motorola Bipolar Power Transistor Device Data Selector Guide 2-7 Table 3. Plastic TO-218 Type (continued) Device Type Resistive Switching ICCont Amps Max VCEO(sus) Volts Min(8

n 5 1 typ 1.5 typ 5 4 85 STYLE 1: PIN 1. 2. 3. 4. BASE COLLECTOR EMITTER COLLECTOR 4 CASE 340D (TO-218 Type, SOT-93) 1 2 3 Table 3. Plastic TO-218 Type Device Type ICCont Amps Max VCEO(sus) Volts Min(8) 8 500/1000 10 60 100 400 NPN Resistive Switching PNP MJH16006A tf s Max @ IC Amp PD (Case) Watts @ 25C hFE Min/Max @ IC Amp ts s Max 5 min 8 2.5 0.25 5 500 min 10 2.5 typ 2.5 typ 5 4(1) 125 5 4(1) 125 fT MHz Min 125 TIP140(2) TIP145(2) TIP141 (2) TIP146 (2) BDV65B (2) BDV64B (2) TIP33C TIP34C 20/100 3 TIP142(2) TIP147(2) 500 min 10 2.5 typ 2.5 typ 5 BU323AP (2) 150/100 6 15 15 6 125 MJH10012 (2) 100/2k 6 15 15 6 118 (1)|h | @ 1 MHz FE (2)Darlington (8)When 2 voltages are given, the format is V 500 min 10 1k min 5 2.5 typ 2.5 typ 125 3 80 4(1) 125 CEO(sus) / VCES. Devices listed in bold, italic are Motorola preferred devices. Motorola Bipolar Power Transistor Device Data Selector Guide 2-7 Table 3. Plastic TO-218 Type (continued) Device Type Resistive Switching ICCont Amps Max VCEO(sus) Volts Min(8
