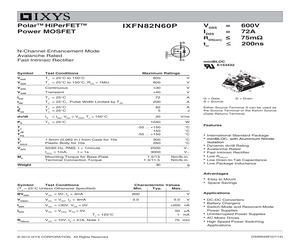

IXFN82N60P PolarTM HiPerFETTM Power MOSFET VDSS ID25 RDS(on) trr N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier S Test Conditions Maximum Ratings VDSS TJ = 25C to 150C 600 V VDGR TJ = 25C to 150C, RGS = 1M 600 V VGSS Continuous 30 V VGSM Transient 40 V ID25 TC = 25C IDM TC = 25C, Pulse Width Limited by TJM IA EAS G 72 A 200 A TC = 25C TC = 25C 82 5 A J dv/dt IS IDM, VDD VDSS, TJ 150C 20 V/ns PD TC = 25C 1040 W -55 ... +150 150 -55 ... +150 C C C 300 260 C C 2500 3000 V~ V~ 1.5/13 1.3/11.5 Nm/lb.in. Nm/lb.in. 30 g TL TSOLD 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s VISOL 50/60 Hz, RMS, t = 1minute IISOL 1mA, t = 1s Md 600V 72A 75m 200ns miniBLOC E153432 Symbol TJ TJM Tstg = = Mounting Torque for Base Plate Terminal Connection Torque Weight S D G = Gate S = Source D = Drain Either Source Terminal S can be used as the Source Terminal or the Kelvin Source (Gate Return) Terminal. Features z z z z z z z z International Standard Package miniBLOC, with Aluminium Nitride

IXFN82N60P PolarTM HiPerFETTM Power MOSFET VDSS ID25 RDS(on) trr N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier S Test Conditions Maximum Ratings VDSS TJ = 25C to 150C 600 V VDGR TJ = 25C to 150C, RGS = 1M 600 V VGSS Continuous 30 V VGSM Transient 40 V ID25 TC = 25C IDM TC = 25C, Pulse Width Limited by TJM IA EAS G 72 A 200 A TC = 25C TC = 25C 82 5 A J dv/dt IS IDM, VDD VDSS, TJ 150C 20 V/ns PD TC = 25C 1040 W -55 ... +150 150 -55 ... +150 C C C 300 260 C C 2500 3000 V~ V~ 1.5/13 1.3/11.5 Nm/lb.in. Nm/lb.in. 30 g TL TSOLD 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s VISOL 50/60 Hz, RMS, t = 1minute IISOL 1mA, t = 1s Md 600V 72A 75m 200ns miniBLOC E153432 Symbol TJ TJM Tstg = = Mounting Torque for Base Plate Terminal Connection Torque Weight S D G = Gate S = Source D = Drain Either Source Terminal S can be used as the Source Terminal or the Kelvin Source (Gate Return) Terminal. Features z z z z z z z z International Standard Package miniBLOC, with Aluminium Nitride

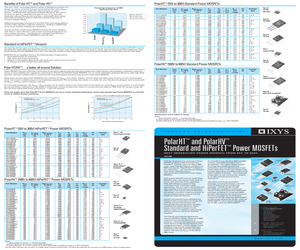

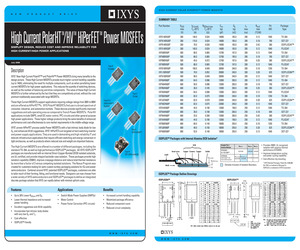

0P IXFN100N50P IXF(1)10N60P IXF(1)14N60P IXFC14N60P IXF(1)18N60P(2) IXFC22N60P IXF(1)22N60P(2) IXF(1)26N60P(2) IXF(1)30N60P IXF(1)30N60P(2) IXF(1)36N60P IXFR36N60P IXF(1)48N60P IXFN48N60P IXFR48N60P IXF(1)64N60P IXFN64N60P IXFR64N60P IXFB82N60P IXFL82N60P IXFN82N60P VDSS max (V) ID (cont) Tc=25C (A) RDS(on) max Tc=25C () Ciss typ (pF) Qg typ (nC) trr* typ (ns) RthJC max (C/W) Pd W 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 2.7 3.2 4.4 12.0 6.0 16.0 10.0 22.0 15.0 26.0 30.0 19.0 36.0 44.0 24.0 64.0 61.0 52.0 52.0 35.0 80.0 66.0 45.0 100.0 70.0 90.0 10.0 14.0 8.0 18.0 12.0 22.0 26.0 15.0 30.0 36.0 20.0 48.0 40.0 32.0 64.0 50.0 36.0 82.0 82.0 82.0 2.0000 1.4000 0.8000 0.5000 0.5000 0.4000 0.4200 0.2700 0.2600 0.2300 0.2000 0.1900 0.1700 0.1400 0.1500 0.0850 0.0850 0.0850 0.0850 0.0950 0.0650 0.0650 0.0720 0.0490 0.0520 0.0490 0.7400 0.5500 0.6300 0.4000 0.3600

ISOPLUS264TM Qg typ (nC) trr max (ns) RthJC max (C/W) Pd (W) IXFK140N30P IXFN140N30P IXFR140N30P IXFX140N30P IXFK80N50P IXFN80N50P IXFR80N50P IXFX80N50P IXFB100N50P IXFL100N50P IXFN100N50P IXFK64N60P IXFN64N60P IXFR64N60P IXFX64N60P IXFB82N60P IXFL82N60P IXFN82N60P IXFK44N80P IXFN44N80P IXFR44N80P IXFX44N80P IXFB60N80P IXFL60N80P IXFN60N80P 300 300 300 300 500 500 500 500 500 500 500 600 600 600 600 600 600 600 800 800 800 800 800 800 800 140.0 110.0 70.0 140.0 80.0 66.0 45.0 80.0 100.0 70.0 90.0 64.0 50.0 36.0 64.0 82.0 82.0 82.0 44.0 39.0 25.0 44.0 60.0 40.0 53.0 0.024 0.024 0.026 0.024 0.065 0.065 0.072 0.065 0.049 0.052 0.049 0.096 0.096 0.105 0.096 0.075 0.078 0.075 0.190 0.190 0.200 0.190 0.140 0.150 0.140 14000 14000 14000 14000 12700 12700 12700 12700 20000 20000 20000 12000 12000 12000 12000 23000 23000 23000 12000 12000 12000 12000 18000 18000 18000 185.0 185.0 185.0 185.0 197.0 195.0 197.0 197.0 240.0 240.0 240.0 200.0 200.0 200.0 200.0 240.0 240.0 240.0 198.0 200.0 200.0 198.0 250.0

00 10 IXFH12N120P SP0715 960 11 IXFH15N100P SK0636 800 12 IXFH20N100P SP0716 800 13 IXFH20N60 SK0544 480 14 IXFH22N50P N/A 400 15 IXFH26N60Q SK0604 480 16 IXFH69N30P SK0527 240 17 IXFK21N100Q SP0737 800 18 IXFK44N55Q SP0737 440 19 IXFL60N80P SP0605 640 20 IXFN82N60P TJ0645E 480 21 IXFP12N50PM K550 400 22 IXFQ14N80P SK0709 640 23 IXFR12N100Q TP0703 800 24 IXFR14N100Q2 SP0732 800 25 IXFR26N100P SP0742 800 26 IXFX48N50Q ZP0545 400 27 IXFX73N30Q SK0613 240 28 IXFX90N30 SK0613 240 29 IXGH20N170P K0716E1 960 30 IXGH20N170P TP0632 960 31 IXGH25N250 TJ0600E 960 32 IXGH28N60B3D1 SP0732 480 33 IXGH30N120B3 TP0606 960 34 IXGH36N60B3D1 SP0732 480 35 IXGH48N60B3 SK0607 480 36 IXGH64N60B3 SK0608 480 37 IXGH72N60B3 SK0608 480 38 IXGH8N100 N/N 800 39 IXGK28N140B3H1 TP0651 960 40 IXGN200N60A2 SP0723 480 41 IXGP120N33TBM-A K723 264 42 IXGP50N33TC K0652 264 43 IXGP70N33TBM-A K726 264 44 IXGP70N33TBM-A K728 264 45 IXGP90N33TB K06251 264 46 IXGP90N33TBM-A K06251 264 47 IXGQ120N30TCD1 SK0631 240 48 IXGQ120N33TB SK0651

00 10 IXFH12N120P SP0715 960 11 IXFH15N100P SK0636 800 12 IXFH20N100P SP0716 800 13 IXFH20N60 SK0544 480 14 IXFH22N50P N/A 400 15 IXFH26N60Q SK0604 480 16 IXFH69N30P SK0527 240 17 IXFK21N100Q SP0737 800 18 IXFK44N55Q SP0737 440 19 IXFL60N80P SP0605 640 20 IXFN82N60P TJ0645E 480 21 IXFP12N50PM K550 400 22 IXFQ14N80P SK0709 640 23 IXFR12N100Q TP0703 800 24 IXFR14N100Q2 SP0732 800 25 IXFR26N100P SP0742 800 26 IXFX48N50Q ZP0545 400 27 IXFX73N30Q SK0613 240 28 IXFX90N30 SK0613 240 29 IXGH20N170P K0716E1 960 30 IXGH20N170P TP0632 960 31 IXGH25N250 TJ0600E 960 32 IXGH28N60B3D1 SP0732 480 33 IXGH30N120B3 TP0606 960 34 IXGH36N60B3D1 SP0732 480 35 IXGH48N60B3 SK0607 480 36 IXGH64N60B3 SK0608 480 37 IXGH72N60B3 SK0608 480 38 IXGH8N100 N/N 800 39 IXGK28N140B3H1 TP0651 960 40 IXGN200N60A2 SP0723 480 41 IXGP120N33TBM-A K723 264 42 IXGP50N33TC K0652 264 43 IXGP70N33TBM-A K726 264 44 IXGP70N33TBM-A K728 264 45 IXGP90N33TB K06251 264 46 IXGP90N33TBM-A K06251 264 47 IXGQ120N30TCD1 SK0631 240 48 IXGQ120N33TB SK0651

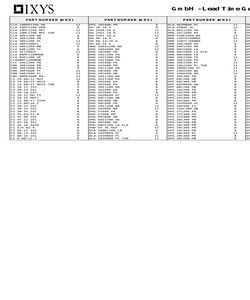

N50Q2 IXFN70N60Q2 4 4 4 8 8 4 CF 6 8 8 8 8 4 8 8 8 8 4 CF CF CF 8 8 8 4 CF CF CF CF 10 4 CF 8 12 6 8 8 8 8 CF 8 CF 4 GmbH - Lead Time Guide PART NUMBER (WKS) IXFN72N55Q2 IXFN73N30 IXFN73N30Q IXFN75N50 IXFN80N48 IXFN80N50 IXFN80N50P IXFN80N50Q2 IXFN80N50Q3 IXFN82N60P IXFN90N30 IXFP102N15T IXFP10N60P IXFP10N80P IXFP110N15T2 IXFP12N50P IXFP12N50PM IXFP130N10T IXFP130N10T2 IXFP14N60P IXFP16N50P IXFP180N10T2 IXFP22N60P3 IXFP3N120 IXFP3N50PM IXFP3N80 IXFP4N100P IXFP4N100Q IXFP5N100P IXFP5N50PM IXFP6N120P IXFP76N15T2 IXFP7N100P IXFP7N80P IXFP7N80PM IXFP8N50PM IXFQ10N80P IXFQ12N80P IXFQ14N80P IXFQ22N60P3 IXFQ23N60Q IXFQ28N60P3 IXFQ50N60P3 PART NUMBER (WKS) CF 6 8 CF CF 8 CF CF 8 8 8 8 8 8 8 8 4 10 8 8 8 8 6 4 6 CF 8 4 8 8 8 8 8 8 CF 8 10 8 8 6 CF 6 6 IXFQ60N50P3 IXFR100N25 IXFR102N30P IXFR10N100Q IXFR120N20 IXFR12N100Q IXFR12N120P IXFR13N50 IXFR140N20P IXFR140N30P IXFR14N100Q2 IXFR150N15 IXFR15N100P IXFR15N80Q IXFR16N120P IXFR16N80P IXFR180N06 IXFR180N07 IXFR180N085 IXFR180N10 IXFR18N90P IXFR200N10P IXFR
