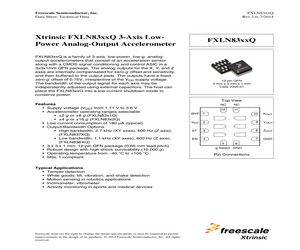

d. 12-pin QFN 3 mm x 3 mm x 1 mm Case 2300-01 Top View NC NC 12 11 BYP 1 10 XOUT VDD 2 9 YOUT ST 3 8 ZOUT EN 4 7 GND 5 6 g-Select GND Pin Connections Ordering Information Part Number Operating Range Bandwidth Temperature Range Package Description Shipping FXLN8361QR1 2/8 g Low -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8362QR1 4/16 g Low -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8371QR1 2/8 g High -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8372QR1 4/16 g High -40 C to +105 C QFN-12 Tape and reel (1 k) Related Documentation The FXLN83xxQ device features and operations are described in a variety of reference manuals, user guides, and application notes. To find the most-current versions of these documents: 1. Go to the Freescale homepage at freescale.com. 2. In the Keyword search box at the top of the page, enter the device number FXLN83xxQ. 3. In the Refine Your Result pane on the left, click on the Documentation link. 2 Freescale Semiconductor, Inc. Xtrinsic FXLN83xxQ 3-Axis Low-Power

d. 12-pin QFN 3 mm x 3 mm x 1 mm Case 2300-01 Top View NC NC 12 11 BYP 1 10 XOUT VDD 2 9 YOUT ST 3 8 ZOUT EN 4 7 GND 5 6 g-Select GND Pin Connections Ordering Information Part Number Operating Range Bandwidth Temperature Range Package Description Shipping FXLN8361QR1 2/8 g Low -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8362QR1 4/16 g Low -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8371QR1 2/8 g High -40 C to +105 C QFN-12 Tape and reel (1 k) FXLN8372QR1 4/16 g High -40 C to +105 C QFN-12 Tape and reel (1 k) Related Documentation The FXLN83xxQ device features and operations are described in a variety of reference manuals, user guides, and application notes. To find the most-current versions of these documents: 1. Go to the Freescale homepage at freescale.com. 2. In the Keyword search box at the top of the page, enter the device number FXLN83xxQ. 3. In the Refine Your Result pane on the left, click on the Documentation link. 2 Freescale Semiconductor, Inc. Xtrinsic FXLN83xxQ 3-Axis Low-Power

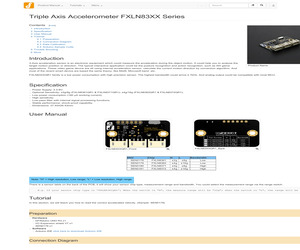

Microsoft band .etc. FXLN83XXQR1 family is a low power consumption with high precision sensor. The highest bandwidth could arrive 2.7kHz. And analog output could be compatible with most MCU. Specification Power Supply: 3.3-8V Optional Sensitivity: 2g/8g (FXLN8361QR1 & FXLN8371QR1) 4g/16g (FXLN8362QR1 & FXLN8372QR1) Low power consumption (180 A working current) High sensitivity Low-pass filter with internal signal processing functions Stable performance, shock-proof capability. Dimensions: 37.44X26.43mm User Manual FXLN83XXQR1_Front SKU SEN0178 SEN0179 SEN0180 SEN0181 FXLN83XXQR1_Back Chip FXLN8361 FXLN8362 FXLN8371 FXLN8372 H L Bandwidth 2g 8g Low 4g 16g Low 2g 8g High 4g 16g High Note: "H" = High resolution, Low range "L" = Low resolution, High range There is a sensor table on the back of the PCB, it will show your sensor chip type, measurement range and bandwidth. You could select the measurement range via the range switch. E.g. If your sensor chip type is "FXLN8361QR1" When the s

559LKUBE For quantities greater than listed, call for quote. Price Each 105.19 105.19 30.81 Description For Development of MMA9550L Series For Development of MMA9551L Series For Development of MMA9559L Series 3-AXIS ACCELEROMETERS NXP MOUSER STOCK NO. 841-FXLN8361QR1 841-FXLN8371QR1 841-MMA7660FCR1 841-MMA8453QT 841-MMA8453QR1 841-MMA8452QR1 841-MMA8451QT 841-MMA8451QR1 841-MMA8652FCR1 841-MMA8653FCR1 841-MMA8491QR1 841-MMA9553LR1 Development Tools 841-EVBCRTOUCH 841-LFSTBEB845X 841-RDMMA845X 841-RDFXWIN8USB 841-RDMMA8491 841-DEMOMMA8491 NXP Part No. FXLN8361QR1 FXLN8371QR1 MMA7660FCR1 MMA8453QT MMA8453QR1 MMA8452QR1 MMA8451QT MMA8451QR1 MMA8652FCR1 MMA8653FCR1 MMA8491QR1 MMA9553LR1 For quantities greater than listed, call for quote. Acceleration Sensitivity (g) Package QFN-12 QFN-12 DFN-10 QFN-16 QFN-16 QFN-16 QFN-16 QFN-16 DFN-10 DFN-10 QFN-12 LGA-16 Maximum Acceleration (g) 2, 8 2, 8 1.5 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 2, 4, 8 8 2, 4, 8 Interface Bus Supply Current

nd .etc. Product Name FXLN83XXQR1 family is a low power consumption with high precision sensor. The highest bandwidth could arrive 2.7kHz. And analog output could be compatible with most MCU. Specification Power Supply: 3.3-8V Optional Sensitivity: 2g/8g (FXLN8361QR1 & FXLN8371QR1) 4g/16g (FXLN8362QR1 & FXLN8372QR1) Low power consumption (180 A working current) High sensitivity Low-pass filter with internal signal processing functions Stable performance, shock-proof capability. Dimensions: 37.44X26.43mm User Manual FXLN83XXQR1_Front FXLN83XXQR1_Back SKU SEN0178 Chip FXLN8361 H L 2g 8g SEN0179 FXLN8362 4g 16g Low SEN0180 FXLN8371 2g 8g High SEN0181 FXLN8372 4g 16g High Bandwidth Low Note: "H" = High resolution, Low range "L" = Low resolution, High range There is a sensor table on the back of the PCB, it will show your sensor chip type, measurement range and bandwidth. You could select the measurement range via the range switch. E.g. If your sensor chip type is "FXLN8361QR1" When the s
