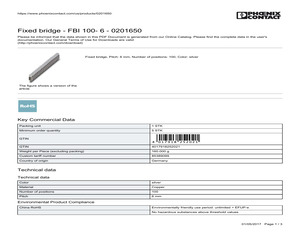

0201650 Fixed bridge - FBI 100- 6 - 0201650 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Fixed bridge, Pitch: 6 mm, Number of positions: 100, Color: silver The figure shows a version of the article Key Commercial Data Packing unit 1 STK Minimum order quantity 5 STK GTIN GTIN 4017918252021 Weight per Piece (excluding packing) 160.000 g Custom tariff number 85389099 Country of origin Germany Technical data Technical data Color silver Material Copper Number of positions 100 Pitch 6 mm Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values 01/05/2017 Page 1 / 3 https://www.phoenixcontact.com/us/products/0201650 Fixed bridge - FBI 100- 6 - 0201650 Classifications eCl@ss eCl@ss 4
r gray Insulating material PA PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 6 Dec 10, 2010 MBK 5 Order No.: 1415018 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1415018 Inflammability class acc. to UL 94 V0 Bridge accessories 0201650 FBI 100- 6 Dimensions Width 6.2 mm Length 28 mm Technical data Maximum load current 32 A (with 4 mm conductor cross section) Rated surge voltage 6 kV Pollution degree 3 Surge voltage category III Insulating material group I Connection in acc. with standard IEC 60947-7-1 Nominal current IN 32 A Nominal voltage UN 500 V Open side panel ja Connection data Conductor cross section solid min. 0.2 mm Conductor cross section solid max. 4 mm Conductor cross section stranded min. 0.2 mm Conductor cross section stranded max. 4 mm Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 12 Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm Conductor cross section stranded, with ferrule without p
