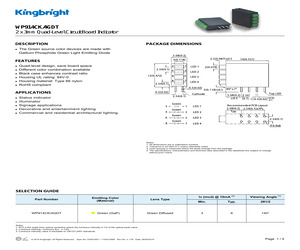

cal centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. (c) 2019 Kingbright. All Rights Reserved. Spec No: DSAF3501 / 1102015955 Rev No: V.11B Date: 06/05/2019 Page 1 / 4 WP914CK/4GDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. Green 565 - nm dom [1] Green 568 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA Green 30 - nm Capacitance C Green 15 - pF Forward Voltage IF = 10mA VF [2] Green 2.0 2.4 V Reverse Current (VR = 5V) IR Green - 10 A Temperature Coefficient of peak IF = 10mA, -10C T 85C TCpeak Green 0.1 - nm/C Temperature Coefficient of dom IF = 10mA, -10C T 85C TCdom Green 0.06 - nm/C Temperature Coefficient of VF IF = 10mA, -10C T 85C TCV Green -1.8 - mV/C Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sort

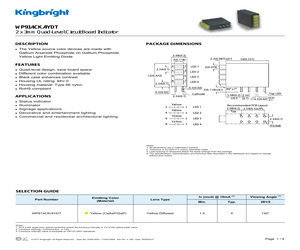

cal centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. (c) 2019 Kingbright. All Rights Reserved. Spec No: DSAF3500 / 1102015958 Rev No: V.11B Date: 06/05/2019 Page 1 / 4 WP914CK/4YDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. Yellow 590 - nm dom [1] Yellow 588 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA Yellow 35 - nm Capacitance C Yellow 20 - pF Forward Voltage IF = 10mA VF [2] Yellow 1.95 2.4 V Reverse Current (VR = 5V) IR Yellow - 10 A Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sorting machine. (Tolerance d : 1nm. ) 2. Forward voltage: 0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result

cal centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. (c) 2017 Kingbright. All Rights Reserved. Spec No: DSAF3501 / 1102015955 Rev No: V.10B Date: 09/06/2017 Page 1 / 4 WP914CK/4GDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. Green 565 - nm dom [1] Green 568 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA Green 30 - nm Capacitance C Green 15 - pF Forward Voltage IF = 10mA VF [2] Green 2.0 2.4 V Reverse Current (VR = 5V) IR Green - 10 uA Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sorting machine. (Tolerance d : 1nm. ) 2. Forward voltage: 0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in se

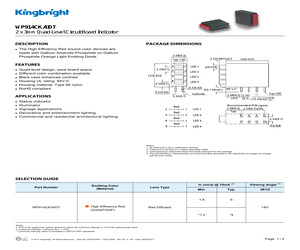

ical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. (c) 2017 Kingbright. All Rights Reserved. Spec No: DSAF3499 / 1102015956 Rev No: V.10A Date: 09/06/2017 Page 1 / 4 WP914CK/4IDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. High Efficiency Red 627 - nm dom [1] High Efficiency Red 617 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA High Efficiency Red 45 - nm Capacitance C High Efficiency Red 15 - pF Forward Voltage IF = 10mA VF [2] High Efficiency Red 1.9 2.3 V Reverse Current (VR = 5V) IR High Efficiency Red - 10 uA Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sorting machine. (Tolerance d : 1nm. ) 2. Forward voltage: 0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving curren

cal centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. (c) 2017 Kingbright. All Rights Reserved. Spec No: DSAF3500 / 1102015958 Rev No: V.10B Date: 09/06/2017 Page 1 / 4 WP914CK/4YDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. Yellow 590 - nm dom [1] Yellow 588 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA Yellow 35 - nm Capacitance C Yellow 20 - pF Forward Voltage IF = 10mA VF [2] Yellow 1.95 2.4 V Reverse Current (VR = 5V) IR Yellow - 10 uA Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sorting machine. (Tolerance d : 1nm. ) 2. Forward voltage: 0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may resul

cal centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. (c) 2017 Kingbright. All Rights Reserved. Spec No: DSAF3500 / 1102015958 Rev No: V.10B Date: 09/06/2017 Page 1 / 4 WP914CK/4YDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. Yellow 590 - nm dom [1] Yellow 588 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA Yellow 35 - nm Capacitance C Yellow 20 - pF Forward Voltage IF = 10mA VF [2] Yellow 1.95 2.4 V Reverse Current (VR = 5V) IR Yellow - 10 uA Wavelength at Peak Emission IF = 10mA Dominant Wavelength IF = 10mA Notes: 1. The dominant wavelength (d) above is the setup value of the sorting machine. (Tolerance d : 1nm. ) 2. Forward voltage: 0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may resul

ical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. (c) 2019 Kingbright. All Rights Reserved. Spec No: DSAF3499 / 1102015956 Rev No: V.11A Date: 06/05/2019 Page 1 / 4 WP914CK/4IDT ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25C Parameter Symbol Emitting Color peak Value Unit Typ. Max. High Efficiency Red 627 - nm dom [1] High Efficiency Red 617 - nm Spectral Bandwidth at 50% REL MAX IF = 10mA High Efficiency Red 45 - nm Capacitance C High Efficiency Red 15 - pF Forward Voltage IF = 10mA VF [2] High Efficiency Red 1.9 2.3 V Reverse Current (VR = 5V) IR High Efficiency Red - 10 A Temperature Coefficient of peak IF = 10mA, -10C T 85C TCpeak High Efficiency Red 0.13 - nm/C Temperature Coefficient of dom IF = 10mA, -10C T 85C TCdom High Efficiency Red 0.06 - nm/C Temperature Coefficient of VF IF = 10mA, -10C T 85C TCV High Efficiency Red -1.9 - mV/C Wavelength at P

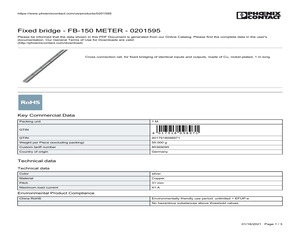

0201595 Fixed bridge-FB-150 METER-0201595 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long Key Commercial Data Packing unit 1M GTIN GTIN 4017918098971 Weight per Piece (excluding packing) 55.000 g Custom tariff number 85369095 Country of origin Germany Technical data Technical data Color silver Material Copper Pitch 31 mm Maximum load current 41 A Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values 01/18/2021Page1/3 https://www.phoenixcontact.com/us/products/0201595 Fixed bridge-FB-150 METER-0201595 Classifications eCl@ss eCl@ss 10.0.1 27141190 eCl@ss 11.0 27141190

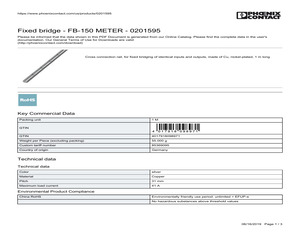

0201595 Fixed bridge - FB-150 METER - 0201595 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long Key Commercial Data Packing unit 1M GTIN GTIN 4017918098971 Weight per Piece (excluding packing) 55.000 g Custom tariff number 85369095 Country of origin Germany Technical data Technical data Color silver Material Copper Pitch 31 mm Maximum load current 41 A Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values 06/16/2019 Page 1 / 3 https://www.phoenixcontact.com/us/products/0201595 Fixed bridge - FB-150 METER - 0201595 Classifications eCl@ss eCl@ss 10.0.1 27141190 eCl@ss 4.

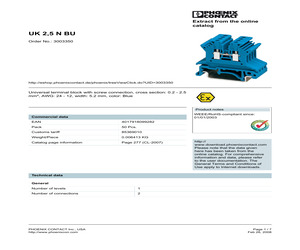

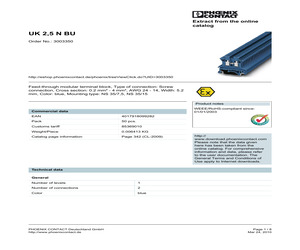

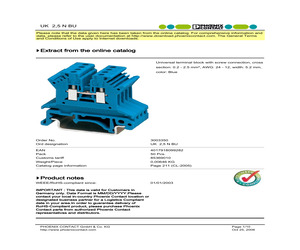

rrent IN AWG/kcmil PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.com 300 V 20 A 30-12 Page 6/10 Oct 25, 2006 UK 2,5 N BU Accessories Item Designation Description 3003224 ATP-UK 3022218 CLIPFIX 35 3001022 3001103 1201442 D-UK 2,5 D-UK 2,5 BU E/UK 0201595 FB-150 METER 0201595 FB-150 METER 1201028 1201280 1201002 NS 32 AL UNPERF 2000MM NS 32 CU/120QMM UNPERF 2000MM NS 32 CU/35QMM UNPERF 2000MM NS 32 PERF 2000MM 1201015 NS 32 UNPERF 2000MM 0801762 0801733 NS 35/ 7,5 CU UNPERF 2000MM NS 35/ 7,5 PERF 2000MM 0801681 NS 35/ 7,5 UNPERF 2000MM 1201756 1201730 NS 35/15 AL UNPERF 2000MM NS 35/15 CU UNPERF 2000MM NS 35/15 PERF 2000MM 1201714 NS 35/15 UNPERF 2000MM 1201798 2770215 NS 35/15-2,3 UNPERF 2000MM TS-KK 3 2303608 ZSR Separating plate, for visual and electrical separation of terminal groups, width: 1.5 mm, color: Gray Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 mounting rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip marker KLM 2 and KLM, width: 9.5

mm, color: gray 3001022 D-UK 2,5 End cover, Length:37.6 mm, Width:1.5 mm, Height:30.7 mm, Color:gray 3001103 D-UK 2,5 BU End cover, Length:42.5 mm, Width:1.5 mm, Height:42 mm, Color:blue 1201442 E/UK End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 1201028 NS 32 AL UNPERF 2000MM G rail 32 mm (NS 32) 1201280 NS 32 CU/120QMM UNPERF 2000MM G-profile DIN rail, deep-drawn, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201358 NS 32 CU/35QMM UNPERF 2000MM G-profile DIN rail, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201002 NS 32 PERF 2000MM G-profile DIN rail, material: Steel, perforated, height 15 mm, width 32 mm, length 2 m 1201015 NS 32 UNPERF 2000MM G-profile DIN rail

or: gray 3001022 D-UK 2,5 End cover, Length: 37.6 mm, Width: 1.5 mm, Height: 30.7 mm, Color: gray 3001103 D-UK 2,5 BU End cover, Length: 42.5 mm, Width: 1.5 mm, Height: 42 mm, Color: blue 1201442 E/UK End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 1201028 NS 32 AL UNPERF 2000MM G rail 32 mm (NS 32) 1201280 NS 32 CU/120QMM UNPERF 2000MM G-profile DIN rail, deep-drawn, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201358 NS 32 CU/35QMM UNPERF 2000MM G-profile DIN rail, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201002 NS 32 PERF 2000MM G-profile DIN rail, material: Steel, perforated, height 15 mm, width 32 mm, length 2 m 1201015 NS 32 UNPERF 2000MM G-profile DIN rail

, width: 9.5 mm, color: gray 3001022 D-UK 2,5 Cover, width: 1.5 mm, color: gray 3001103 D-UK 2,5 BU Cover, width: 1.5 mm, color: blue 1201442 E/UK End clamp, for supporting the electronic base. If mounted vertically, 2 end clamps are required in each case 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 1201028 NS 32 AL UNPERF 2000MM G rail 32 mm (NS 32) 1201280 NS 32 CU/120QMM UNPERF 2000MM G-profile DIN rail, deep-drawn, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201358 NS 32 CU/35QMM UNPERF 2000MM G-profile DIN rail, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201002 NS 32 PERF 2000MM G-profile DIN rail, material: Steel, perforated, height 15 mm, width 32 mm, length 2 m 1201015 NS 32 UNPERF 2000MM G-profile DIN rail

0201595 Fixed bridge - FB-150 METER - 0201595 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long Product description Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long Key commercial data Packing unit 1 Minimum order quantity 1 Catalog page Page 95 (IF-2005) GTIN Weight per piece (including packing) 0.0 GRM Weight per Piece (excluding packing) 55.0 GRM Country of origin GERMANY Technical data Product type Bridge Classifications eclass eClass 4.0 27141199 eClass 4.1 27141199 eClass 5.0 27141140 eClass 5.1 27141140 eClass 6.0 27141140 etim ETIM 2.0 EC000489 ETIM 3.0 EC000489 ETIM 4.0 EC000489 unspsc UNSPSC 6.01 30211829 14.05.201

/ 6 Jan 24, 2011 3001022 D-UK 2,5 End cover, Length:37.6 mm, Width:1.5 mm, Height:30.7 mm, Color:gray 3001103 D-UK 2,5 BU End cover, Length:42.5 mm, Width:1.5 mm, Height:42 mm, Color:blue 1201442 E/UK End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 0201595 FB-150 METER Cross connection rail, for fixed bridging of identical inputs and outputs, made of Cu, nickel-plated, 1 m long 1201028 NS 32 AL UNPERF 2000MM G rail 32 mm (NS 32) 1201280 NS 32 CU/120QMM UNPERF 2000MM G-profile DIN rail, deep-drawn, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201358 NS 32 CU/35QMM UNPERF 2000MM G-profile DIN rail, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m 1201002 NS 32 PERF 2000MM G-profile DIN rail, material: Steel, perforated, height 15 mm, width 32 mm, length 2 m 1201015 NS 32 UNPERF 2000MM G-profile DIN rail
